ReturnGZ45X-6/10/16 pipe network elastic seat sealing gate valve

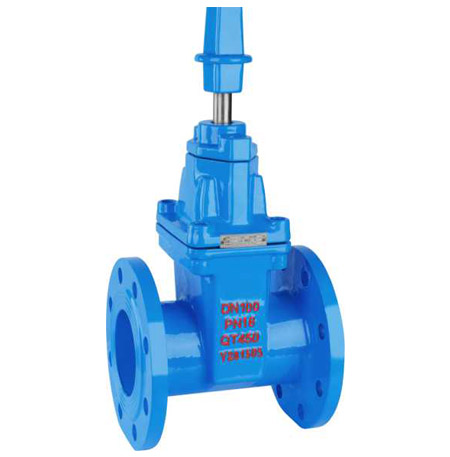

GZ45X-6/10/16 pipe network elastic seat sealing gate valve
use:
The valve is an elastic seat sealing gate valve, widely used in the water supply and drainage pipeline system of electric power, hydraulic power, chemical industry, urban construction and other industries, as a control
Opening and closing or adjusting device for medium flow
Characteristics
A, the overall sealing of the gate, its good coverage and accurate size to ensure the reliability of the seal; B, the bottom of the valve and the water pipe phase
The same flat bottom type does not produce debris accumulation; C. The whole valve is sprayed with non-toxic epoxy resin to prevent corrosion and rust. Not only for drinking
Water system, and can be used in sewage systems
Product Specifications:
Transmission mode: manual
Pressure test: GB/T13927-2008
Pressure rating: 0.6MPa-1.6MPa
Structure length: GB/T12221-2005
Applicable medium: water, steam, gas, oil, etc.
Design and manufacture: GB/T24924-2010
Applicable temperature: 0 ° C ~ 80 ° C
Flange connection size: GB/T17241.6-2008
Nominal diameter: DN40~DN600
