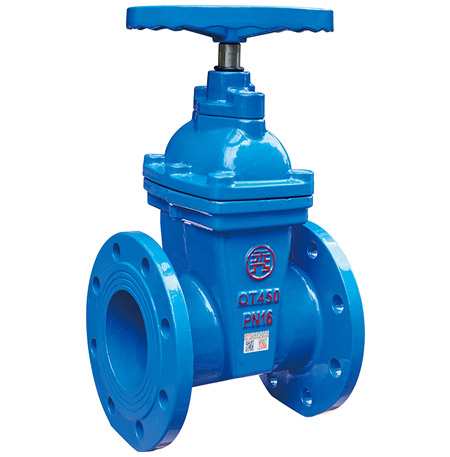

Z45X-6/10/16 dark rod elastic seat sealing gate valve
Uses: It is used for cutting, connecting and adjusting the medium in the pipeline. It has good fluid control characteristics and closed sealing performance. It is widely used for metallurgy,
Power, petroleum, chemical, air, gas, combustible gas, and pipelines for corrosive media such as water supply and drainage
The overall sealing of the gate is good, its good coverage and accurate size ensure the reliability of the seal; B, the bottom of the valve is used with the water pipe
The same flat bottom type does not produce debris accumulation; C. The whole valve is sprayed with non-toxic epoxy resin to prevent corrosion and rust. Not only for drinking
Water system, and can be used in sewage system; D, self-tightening seal with gland, greatly improving sealing performance; E, replacement seal is vulnerable
Extremely convenient
Product Specifications
Transmission mode: hand wheel Pressure test: GB/T13927-2008
Pressure rating: 0.6MPa-1.6MPa Structure length: GB/T12221-2005
Applicable medium: water, steam, gas, oil, etc. Design and manufacture: GB/T24924-2010
Applicable temperature: 0 °C ~ 80 °C Flange connection size: GB/T17241.6-2008
Nominal diameter: DN40~DN1200
